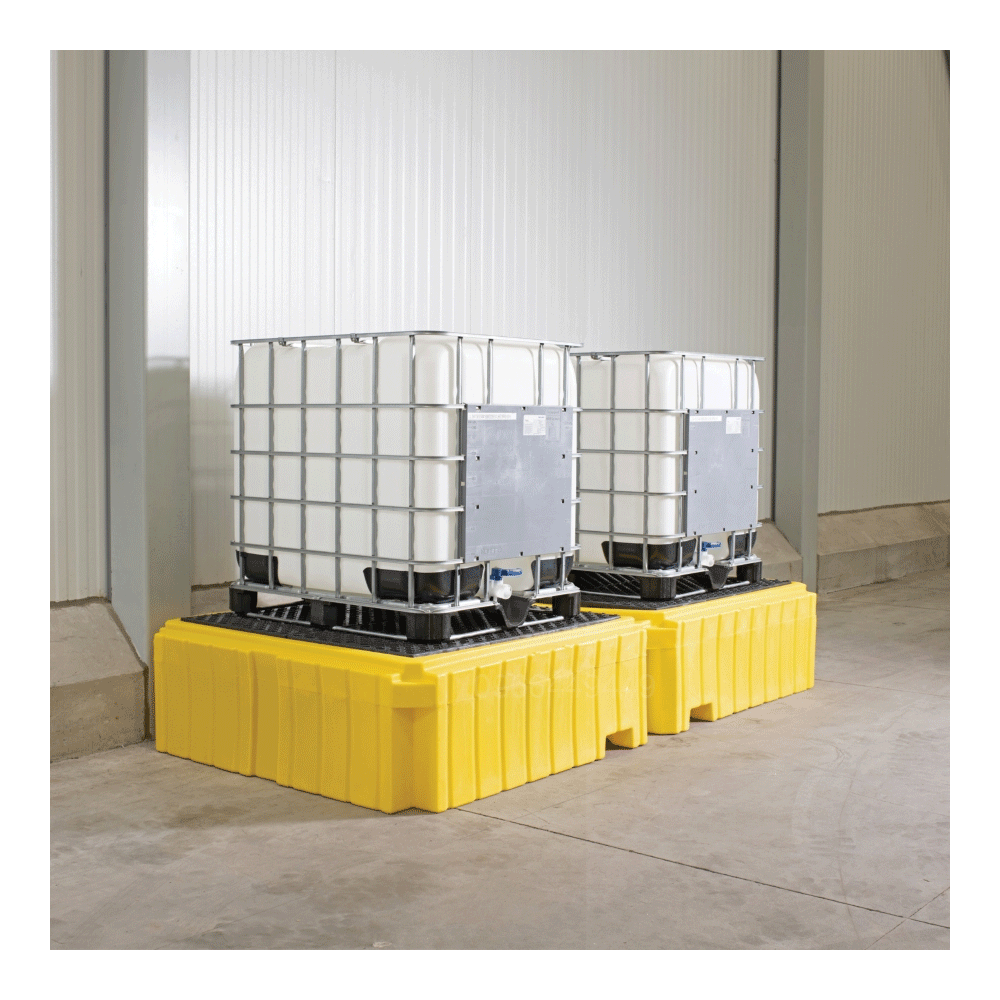

- Strong enough for long-term storage of IBCs, this innovative design transfers weight to load bearing channels to maximize capacity
- Molded-in sump catches leaks, drips and spills to help you comply with regulations and keep storage areas clean
- Polyethylene construction resists rust, corrosion and most chemicals
- Textured grating holds a variety of IBC sizes and lifts out for easy sump access; use support pads or plates if tank has feet or pegs
- Low profile for easy access to and dispensing from IBC tanks
- Two-way forklift entry allows movement from either direction when not loaded
- Optional .75″ drain plug lets you empty sump without removing drums or grating

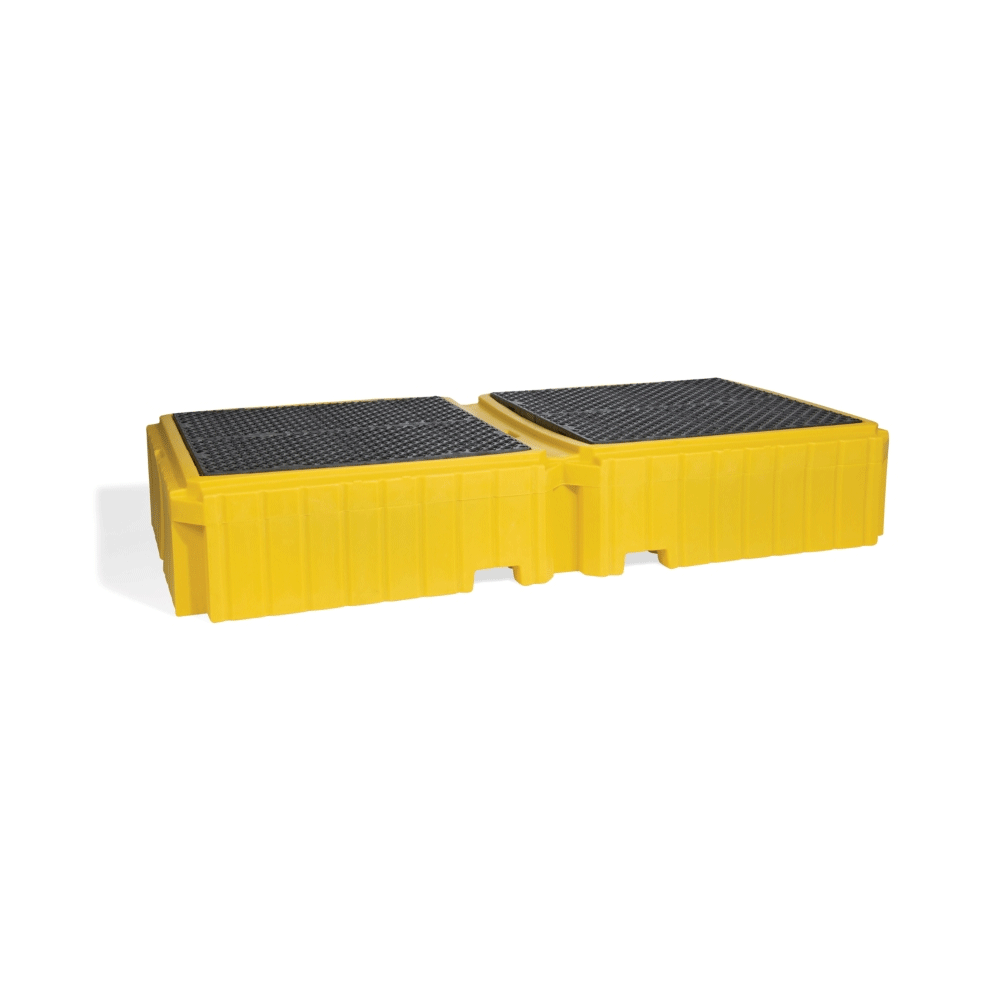

- Side-by-side design lets you store two IBC tanks on one unit (8,000-lb. UDL per side); avoids the higher cost of buying two single units
Specifications

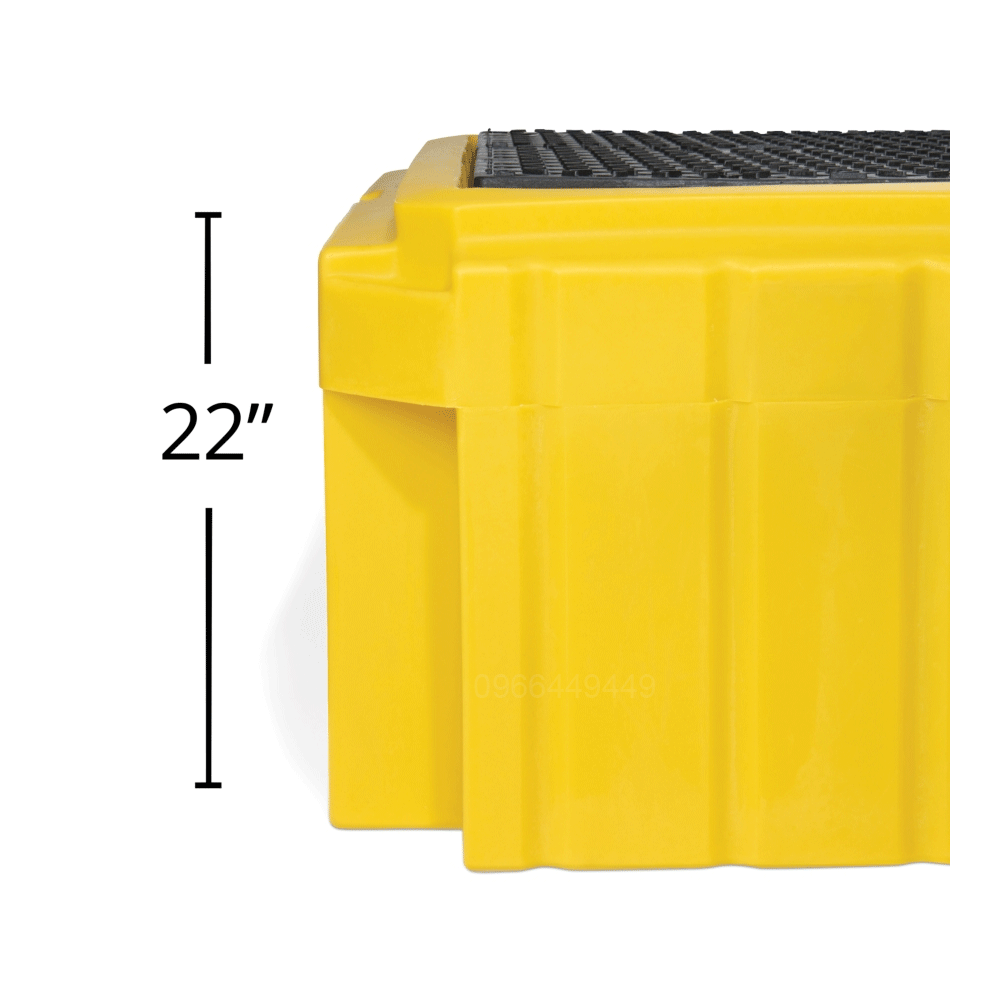

| Dimensions | 61.625″ W x 124.6″ L x 22″ H |
|---|---|
| Recycled Content | 34% Post-Industrial Recycled Polyethylene |
| Load Capacity UDL | 16000 lbs. |
| Sump Capacity | 535 gal. |
| Brand | PIG |
| Drain | Optional .75″ Drain |
| Double-Stackable Unit | No |
| Grates | (4) 26″ W x 52″ L Grates |
| Fork Truck Access | Two-Way Fork Access, Move Unloaded Only |
| Holds | (2) IBCs |
| Material | Poly |
| Use With Flammables | No |
| Sold as | 1 each |
| Weight | 450 lbs. |
| # per Pallet | 3 |
| Composition | Sump: Polyethylene (LDPE) w/ UV Inhibitor Grate: Polyethylene (HDPE) |
| UNSPSC | 24101905 |
